TONE

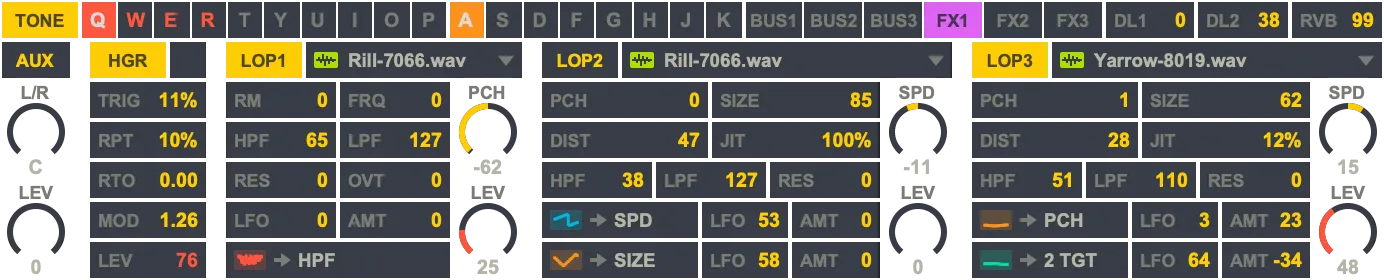

The TONE module is a non-sequential instrument module. It has an external input, a higurashi generator, and three various loopers.

Parameter	Description
BUS	Select the output destination for the module. See also Audio Bus.
DL1	Adjusts the send level to DL1.
DL2	Adjusts the send level to DL2.
RVB	Adjusts the send level to RVB.

AUX : External Input

AUX

Parameter	Description
AUX (Activator Switch)	Turns the module on or off.
L/R	Adjusts the left/right balance of the input source. Swinging all the way to the left uses only the left channel of the input source. The same goes for right.
LEV	Adjusts the output level.

HGR : Higurashi Generator

HGR

Parameter	Description
HGR (Activator Switch)	Turns the module on or off.
TRIG	Sets the probability of triggering. When triggered, it generates a nice beep sound.
RPT	Sets the probability of being triggered again when the beep sound ends.
RTO	Adjusts the frequency ratio of the frequency modulator.
MOD	Adjusts the amount of frequency modulation.
LEV	Adjusts the output level.

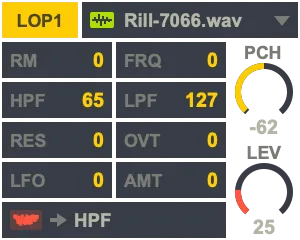

LOP1 : Looper

LOP1

Parameter	Description
LOP1 (Activator Switch)	Turns sound on or off. While on, the sound will continue to loop throughout.
FILE MENU	Selects the sound file. See also Sound File Menu.
RM	Adjusts the amount of ring modulation.
FRQ	Adjusts the frequency of ring modulation.
HPF	Adjusts the cutoff frequency of the high-pass filter.
LPF	Adjusts the cutoff frequency of the low-pass filter.
RES	Adjusts the resonance amount of the high-pass and low-pass filter.
OVT	Adjusts the amount of overtone.
LFO	Adjusts the frequency of the LFO.
AMT	Adjusts the amount of LFO modulation.
LFO MENU	Selects the LFO waveform and target.
PCH	Adjusts the pitch of the sound.
LEV	Adjusts the output level.

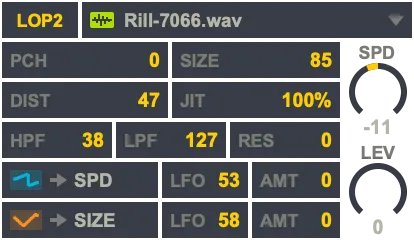

LOP2 : Granular Looper

LOP2

Parameter	Description
LOP2 (Activator Switch)	Turns sound on or off. While on, the sound will continue to loop throughout.
FILE MENU	Selects the sound file. See also Sound File Menu.
PCH	Adjusts the pitch of the sound.
SIZE	Adjusts the grain size.
DIST	Adjusts the grain distance.
JIT	Adjusts the jitter.
HPF	Adjusts the cutoff frequency of the high-pass filter.
LPF	Adjusts the cutoff frequency of the low-pass filter.
RES	Adjusts the resonance amount of the high-pass and low-pass filter.
OVT	Adjusts the amount of overtone.
LFO MENU	Selects the LFO waveform and target.
LFO	Adjusts the frequency of the LFO.
AMT	Adjusts the amount of LFO modulation.
SPD	Adjusts the playback speed.
LEV	Adjusts the output level.

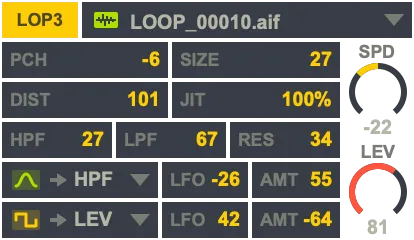

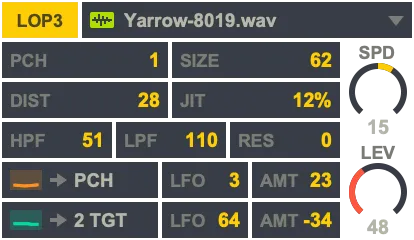

LOP3 : Granular Looper

LOP3

Parameter	Description
LOP3 (Activator Switch)	Turns sound on or off. While on, the sound will continue to loop throughout.
FILE MENU	Selects the sound file. See also Sound File Menu.
PCH	Adjusts the pitch of the sound.
SIZE	Adjusts the grain size.
DIST	Adjusts the grain distance.
JIT	Adjusts the jitter.
HPF	Adjusts the cutoff frequency of the high-pass filter.
LPF	Adjusts the cutoff frequency of the low-pass filter.
RES	Adjusts the resonance amount of the high-pass and low-pass filter.
OVT	Adjusts the amount of overtone.
LFO MENU	Selects the LFO waveform and target.
LFO	Adjusts the frequency of the LFO.
AMT	Adjusts the amount of LFO modulation.
SPD	Adjusts the playback speed.
LEV	Adjusts the output level.

Controllable Parameters (94 Parameters)

Category	OSC address	Range	Default
PRESET	`/tone/preset/{KEY(A-K)}`	`PRESET` -	-
PRESET	`/tone/preset/{KEY(Q-P)}`	`PRESET` -	-
PARAM	`/tone/aux/enable`	`TOGGLE` ON - OFF	OFF
PARAM	`/tone/aux/channel`	`NUMBER` L50 - R50	C
PARAM	`/tone/aux/level`	`NUMBER` 0 - 127	0
PARAM	`/tone/bus/bus1`	`TOGGLE` ON - OFF	OFF
PARAM	`/tone/bus/bus2`	`TOGGLE` ON - OFF	OFF
PARAM	`/tone/bus/bus3`	`TOGGLE` ON - OFF	ON
PARAM	`/tone/bus/fx1`	`TOGGLE` ON - OFF	OFF
PARAM	`/tone/bus/fx2`	`TOGGLE` ON - OFF	OFF
PARAM	`/tone/bus/fx3`	`TOGGLE` ON - OFF	OFF
PARAM	`/tone/bus/send/delay1`	`NUMBER` 0 - 127	0
PARAM	`/tone/bus/send/delay2`	`NUMBER` 0 - 127	0
PARAM	`/tone/bus/send/reverb`	`NUMBER` 0 - 127	0
TRIG	`/tone/hgr/trigger`	`TRIGGER` 0.00 - 1.00	-
PARAM	`/tone/hgr/enable`	`TOGGLE` ON - OFF	OFF
PARAM	`/tone/hgr/dejavu/length`	`NUMBER` 1 - 32	8
PARAM	`/tone/hgr/dejavu/prob`	`NUMBER` 0% - 100%	0%
PARAM	`/tone/hgr/level`	`NUMBER` 0 - 127	64
PARAM	`/tone/hgr/modulation`	`NUMBER` 0.00 - 100.00	1.00
PARAM	`/tone/hgr/prob/trigger`	`NUMBER` 0% - 100%	20%
PARAM	`/tone/hgr/prob/repeat`	`NUMBER` 0% - 100%	10%
PARAM	`/tone/hgr/ratio`	`NUMBER` -36.00 - 36.00	0.00
PARAM	`/tone/looper1/enable`	`TOGGLE` ON - OFF	OFF
PARAM	`/tone/looper1/dejavu/length`	`NUMBER` 1 - 32	8
PARAM	`/tone/looper1/dejavu/prob`	`NUMBER` 0% - 100%	0%
PARAM	`/tone/looper1/filter/highpass`	`NUMBER` 0 - 127	0
PARAM	`/tone/looper1/filter/lowpass`	`NUMBER` 0 - 127	127
PARAM	`/tone/looper1/filter/resonance`	`NUMBER` 0 - 127	0
PARAM	`/tone/looper1/level`	`NUMBER` 0 - 127	0
PARAM	`/tone/looper1/lfo/amount`	`NUMBER` -64 - 64	0
PARAM	`/tone/looper1/lfo/frequency`	`NUMBER` -64 - 64	0
PARAM	`/tone/looper1/lfo/target`	`CHOICES` PCH, RM, FRQ, HPF, LPF, RES, OVT, LEV	HPF
PARAM	`/tone/looper1/lfo/waveform`	`CHOICES` SIN-UP, SIN-DOWN, TRI-UP, TRI-DOWN, SAW-UP, SAW-DOWN, SQR-UP, SQR-DOWN, RND	SIN-UP
PARAM	`/tone/looper1/overtone`	`NUMBER` 0 - 127	0
PARAM	`/tone/looper1/pitch`	`NUMBER` -64 - 64	0
PARAM	`/tone/looper1/ringmod/amount`	`NUMBER` 0 - 127	0
PARAM	`/tone/looper1/ringmod/frequency`	`NUMBER` 0 - 127	0
PARAM	`/tone/looper2/enable`	`TOGGLE` ON - OFF	OFF
PARAM	`/tone/looper2/dejavu/length`	`NUMBER` 1 - 32	8
PARAM	`/tone/looper2/dejavu/prob`	`NUMBER` 0% - 100%	0%
PARAM	`/tone/looper2/distance`	`NUMBER` 0 - 127	64
PARAM	`/tone/looper2/filter/highpass`	`NUMBER` 0 - 127	0
PARAM	`/tone/looper2/filter/lowpass`	`NUMBER` 0 - 127	127
PARAM	`/tone/looper2/filter/resonance`	`NUMBER` 0 - 127	0
PARAM	`/tone/looper2/jit`	`NUMBER` 0% - 100%	50%
PARAM	`/tone/looper2/level`	`NUMBER` 0 - 127	0
PARAM	`/tone/looper2/lfo1/amount`	`NUMBER` -64 - 64	0
PARAM	`/tone/looper2/lfo1/frequency`	`NUMBER` -64 - 64	0
PARAM	`/tone/looper2/lfo1/target`	`CHOICES` SPD, PCH, SIZE, DIST, JIT, HPF, LPF, RES, LEV	SPD
PARAM	`/tone/looper2/lfo1/waveform`	`CHOICES` SIN-UP, SIN-DOWN, TRI-UP, TRI-DOWN, SAW-UP, SAW-DOWN, SQR-UP, SQR-DOWN, RND	SIN-UP
PARAM	`/tone/looper2/lfo2/amount`	`NUMBER` -64 - 64	0
PARAM	`/tone/looper2/lfo2/frequency`	`NUMBER` -64 - 64	0
PARAM	`/tone/looper2/lfo2/target`	`CHOICES` SPD, PCH, SIZE, DIST, JIT, HPF, LPF, RES, LEV	SIZE
PARAM	`/tone/looper2/lfo2/waveform`	`CHOICES` SIN-UP, SIN-DOWN, TRI-UP, TRI-DOWN, SAW-UP, SAW-DOWN, SQR-UP, SQR-DOWN, RND	SIN-UP
PARAM	`/tone/looper2/pitch`	`NUMBER` -64 - 64	0
PARAM	`/tone/looper2/size`	`NUMBER` 0 - 127	64
PARAM	`/tone/looper2/speed`	`NUMBER` -64 - 64	32
PARAM	`/tone/looper3/enable`	`TOGGLE` ON - OFF	OFF
PARAM	`/tone/looper3/dejavu/length`	`NUMBER` 1 - 32	8
PARAM	`/tone/looper3/dejavu/prob`	`NUMBER` 0% - 100%	0%
PARAM	`/tone/looper3/distance`	`NUMBER` 0 - 127	64
PARAM	`/tone/looper3/filter/highpass`	`NUMBER` 0 - 127	0
PARAM	`/tone/looper3/filter/lowpass`	`NUMBER` 0 - 127	127
PARAM	`/tone/looper3/filter/resonance`	`NUMBER` 0 - 127	0
PARAM	`/tone/looper3/jit`	`NUMBER` 0% - 100%	50%
PARAM	`/tone/looper3/level`	`NUMBER` 0 - 127	0
PARAM	`/tone/looper3/lfo1/amount`	`NUMBER` -64 - 64	0
PARAM	`/tone/looper3/lfo1/frequency`	`NUMBER` -64 - 64	0
PARAM	`/tone/looper3/lfo1/target`	`CHOICES` SPD, PCH, SIZE, DIST, JIT, HPF, LPF, RES, LEV	SPD
PARAM	`/tone/looper3/lfo1/waveform`	`CHOICES` SIN-UP, SIN-DOWN, TRI-UP, TRI-DOWN, SAW-UP, SAW-DOWN, SQR-UP, SQR-DOWN, RND	SIN-UP
PARAM	`/tone/looper3/lfo2/amount`	`NUMBER` -64 - 64	0
PARAM	`/tone/looper3/lfo2/frequency`	`NUMBER` -64 - 64	0
PARAM	`/tone/looper3/lfo2/target`	`CHOICES` SPD, PCH, SIZE, DIST, JIT, HPF, LPF, RES, LEV	SIZE
PARAM	`/tone/looper3/lfo2/waveform`	`CHOICES` SIN-UP, SIN-DOWN, TRI-UP, TRI-DOWN, SAW-UP, SAW-DOWN, SQR-UP, SQR-DOWN, RND	SIN-UP
PARAM	`/tone/looper3/pitch`	`NUMBER` -64 - 64	0
PARAM	`/tone/looper3/size`	`NUMBER` 0 - 127	64
PARAM	`/tone/looper3/speed`	`NUMBER` -64 - 64	32
