Modules Guide - SEND

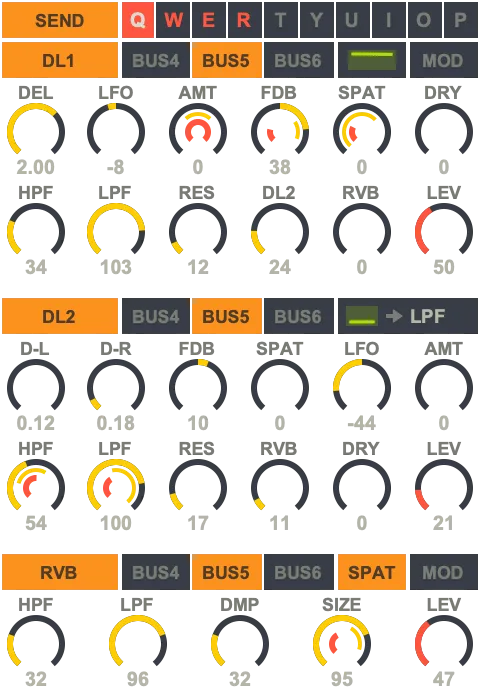

SEND is a send effect module with two delays and a reverb.
DL1 : Delay
| Parameter | Description |
|---|---|
| DL1 (Activator Switch) | Turns the effect on or off. |
| BUS | Selects the output destination for the module. See also Audio Bus. |
| MOD1 | Delay time is halved while MOD1 is on. |
| MOD2 | The amount of feedback is increased while MOD2 is on. Turning it off resets the delay at the beginning of the next bar. |
| DEL | Adjusts the delay time. |
| LFO | Adjusts the frequency of the LFO. |
| AMT | Adjusts the amount of LFO modulation; the LFO modulates the delay time. |
| FDB | Adjusts the amount of feedback. |
| SPAT | Adjusts the amount of left/right signal swap. When set to maximum, the left and right signals will completely swap each time feedback is given. |
| DRY | Adjusts the mix volume of the dry signal. |
| HPF | Adjusts the cutoff frequency of the high-pass filter. |
| LPF | Adjusts the cutoff frequency of the low-pass filter. |
| RES | Adjusts the resonance amount of the high-pass and low-pass filter. |
| DL2 | Adjusts the send level to DL2. |
| RVB | Adjusts the send level to RVB. |
| LEV | Adjusts the output level. |
DL2 : Stereo Delay
| Parameter | Description |
|---|---|
| DL2 (Activator Switch) | Turns the effect on or off. |
| BUS | Selects the output destination for the module. See also Audio Bus. |
| LFO MENU | Selects the LFO waveform and target. |
| D-L | Adjusts the left delay time. |
| D-R | Adjusts the right delay time. |
| FDB | Adjusts the amount of feedback. |
| SPAT | Adjusts the amount of left/right signal swap. When set to maximum, the left and right signals will completely swap each time feedback is given. |
| LFO | Adjusts the frequency of the LFO. |
| AMT | Adjusts the amount of LFO modulation; the LFO modulates the delay time. |
| HPF | Adjusts the cutoff frequency of the high-pass filter. |
| LPF | Adjusts the cutoff frequency of the low-pass filter. |
| RES | Adjusts the resonance amount of the high-pass and low-pass filter. |
| RVB | Adjusts the send level to RVB. |
| DRY | Adjusts the mix volume of the dry signal. |
| LEV | Adjusts the output level. |
RVB : Reverb
| Parameter | Description |
|---|---|
| RVB (Activator Switch) | Turns the effect on or off. |
| BUS | Selects the output destination for the module. See also Audio Bus. |
| SPAT | Shifts the phase of the left and right signals to add more spaciousness to the sound. |
| MOD | The reverb amount is increased while MOD is on. |
| HPF | Adjusts the cutoff frequency of the high-pass filter. |
| LPF | Adjusts the cutoff frequency of the low-pass filter. |
| DMP | Adjusts the amount of damping. |
| SIZE | Adjusts the reverb size. |
| LEV | Adjusts the output level. |
Controllable Parameters (61 Parameters)
| Category | OSC address | Range | Default |
|---|---|---|---|
| PRESET | /send/preset/{KEY(Q-P)} | PRESET - | - |
| PARAM | /send/delay1/enable | TOGGLE ON - OFF | ON |
| PARAM | /send/delay1/bus/bus4 | TOGGLE ON - OFF | ON |
| PARAM | /send/delay1/bus/bus5 | TOGGLE ON - OFF | OFF |
| PARAM | /send/delay1/bus/bus6 | TOGGLE ON - OFF | OFF |
| PARAM | /send/delay1/bus/send/delay2 | NUMBER 0 - 127 | 0 |
| PARAM | /send/delay1/bus/send/reverb | NUMBER 0 - 127 | 0 |
| PARAM | /send/delay1/dejavu/length | NUMBER 1 - 32 | 8 |
| PARAM | /send/delay1/dejavu/prob | NUMBER 0% - 100% | 0% |
| PARAM | /send/delay1/delaytime | NUMBER 0.12 - 8.00 | 2.00 |
| PARAM | /send/delay1/dry | NUMBER 0 - 127 | 0 |
| PARAM | /send/delay1/feedback | NUMBER -64 - 64 | 38 |
| PARAM | /send/delay1/feedback/spatial | NUMBER 0 - 127 | 0 |
| PARAM | /send/delay1/filter/highpass | NUMBER 0 - 127 | 0 |
| PARAM | /send/delay1/filter/lowpass | NUMBER 0 - 127 | 127 |
| PARAM | /send/delay1/filter/resonance | NUMBER 0 - 127 | 0 |
| PARAM | /send/delay1/level | NUMBER 0 - 127 | 64 |
| PARAM | /send/delay1/lfo/amount | NUMBER -64 - 64 | 0 |
| PARAM | /send/delay1/lfo/frequency | NUMBER -64 - 64 | 0 |
| PARAM | /send/delay1/mod1 | TOGGLE(SYNC) ON - OFF | - |
| PARAM | /send/delay1/mod2 | TOGGLE(SYNC) ON - OFF | - |
| PARAM | /send/delay2/enable | TOGGLE ON - OFF | ON |
| PARAM | /send/delay2/bus/bus4 | TOGGLE ON - OFF | OFF |
| PARAM | /send/delay2/bus/bus5 | TOGGLE ON - OFF | ON |
| PARAM | /send/delay2/bus/bus6 | TOGGLE ON - OFF | OFF |
| PARAM | /send/delay2/bus/send/reverb | NUMBER 0 - 127 | 0 |
| PARAM | /send/delay2/dejavu/length | NUMBER 1 - 32 | 8 |
| PARAM | /send/delay2/dejavu/prob | NUMBER 0% - 100% | 0% |
| PARAM | /send/delay2/delaytime/left | NUMBER 0.12 - 8.00 | 2.00 |
| PARAM | /send/delay2/delaytime/right | NUMBER 0.12 - 8.00 | 2.00 |
| PARAM | /send/delay2/dry | NUMBER 0 - 127 | 0 |
| PARAM | /send/delay2/feedback | NUMBER -64 - 64 | 38 |
| PARAM | /send/delay2/feedback/spatial | NUMBER 0 - 127 | 0 |
| PARAM | /send/delay2/filter/highpass | NUMBER 0 - 127 | 0 |
| PARAM | /send/delay2/filter/lowpass | NUMBER 0 - 127 | 127 |
| PARAM | /send/delay2/filter/resonance | NUMBER 0 - 127 | 0 |
| PARAM | /send/delay2/level | NUMBER 0 - 127 | 64 |
| PARAM | /send/delay2/lfo/amount | NUMBER -64 - 64 | 0 |
| PARAM | /send/delay2/lfo/frequency | NUMBER -64 - 64 | 0 |
| PARAM | /send/delay2/lfo/target | CHOICES INPUT, D-L, D-R, L+R, FDB, SPAT, HPF, LPF, RES, RVB, DRY, LEV | HPF |
| PARAM | /send/delay2/lfo/waveform | CHOICES SIN-UP, SIN-DOWN, TRI-UP, TRI-DOWN, SAW-UP, SAW-DOWN, SQR-UP, SQR-DOWN, RND | SIN-UP |
| PARAM | /send/reverb/enable | TOGGLE ON - OFF | ON |
| PARAM | /send/reverb/bus/bus4 | TOGGLE ON - OFF | OFF |
| PARAM | /send/reverb/bus/bus5 | TOGGLE ON - OFF | ON |
| PARAM | /send/reverb/bus/bus6 | TOGGLE ON - OFF | OFF |
| PARAM | /send/reverb/damping | NUMBER 0 - 127 | 32 |
| PARAM | /send/reverb/highpass | NUMBER 0 - 127 | 32 |
| PARAM | /send/reverb/level | NUMBER 0 - 127 | 64 |
| PARAM | /send/reverb/lowpass | NUMBER 0 - 127 | 96 |
| PARAM | /send/reverb/mod | TOGGLE(SYNC) ON - OFF | - |
| PARAM | /send/reverb/size | NUMBER 0 - 127 | 64 |
| PARAM | /send/reverb/spatial | TOGGLE ON - OFF | ON |
