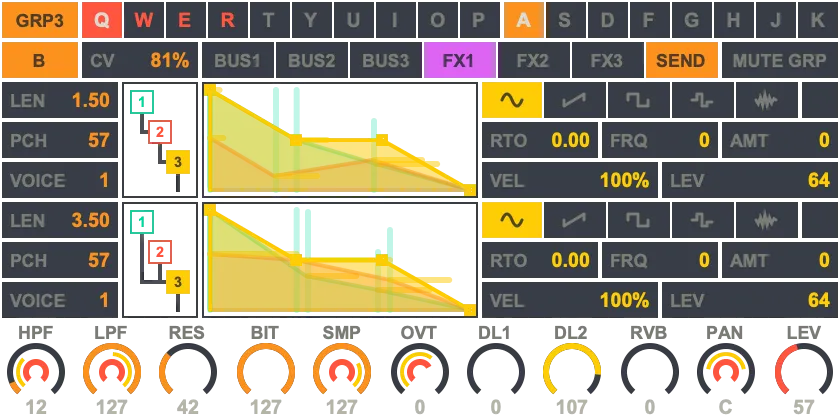

Modules Guide - GRP3
The GRP3 module contains two FM synths that can be sequenced with SEQ3.
| Parameter | Description |
|---|---|
| B (Activator Switch) | Turns the module on or off, also operated by pressing the B key. |
| CV | Sets the probability of sending CV. See also Trigger Events (CV). |
| BUS | Selects the output destination for the module. See also Audio Bus. |
| MUTE GRP | Turns the mute on or off. See also Mute. |
| HPF | Randomizable Adjusts the cutoff frequency of the high-pass filter. |
| LPF | Randomizable Adjusts the cutoff frequency of the low-pass filter. |
| RES | Randomizable Adjusts the resonance amount of the high-pass and low-pass filter. |
| BIT | Randomizable Adjusts the bit depth. Lower values produce a lo-fi sound. |
| SMP | Randomizable Adjusts the sample rate. |
| OVT | Randomizable Adjusts the amount of overtone. |
| DL1 | Randomizable Adjusts the send level to DL1, which is not sent if the send bus is disabled. |
| DL2 | Randomizable Adjusts the send level to DL2, which is not sent if the send bus is disabled. |
| RVB | Randomizable Adjusts the send level to RVB, which is not sent if the send bus is disabled. |
| PAN | Randomizable Adjusts the panning. |
| LEV | Randomizable Adjusts the output level. |

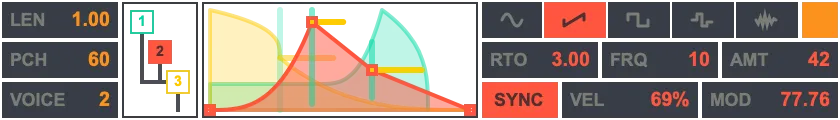

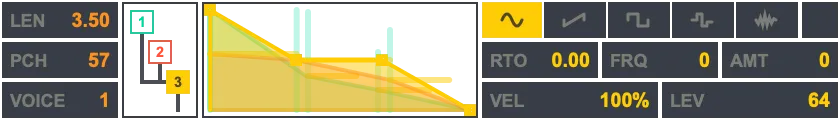

3-1 : FM Synth
| Parameter | Description |
|---|---|
| LEN | Adjusts the length of the FM synth. |
| PCH | Adjusts the pitch of the sound in semitone steps. |
| VOICE | Sets the maximum number of voices that can play at once. |
| ALGORITHM | Selects the algorithm type. See also FM Algorithm. |
| ENVELOPE | Sets the volume and pitch envelopes. See also Envelope. |

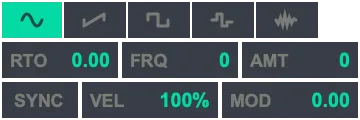

| WAVEFORM | Selects the waveform of the active operator. |
| RTO | Adjusts the frequency ratio of the active operator. |
| FRQ | Adjusts the ring modulation frequency of the active operator. |
| AMT | Adjusts the amount of ring modulation for the active operator. |
| SYNC | Sets the sync modulation of the active operator. |
| VEL | Adjusts the percentage of velocity applied to the active operator; setting to 0% ignores the velocity value of the sequence. |
| MOD | Adjusts the amount of frequency modulation for the active operator. |
| LEV | Adjusts the output level of the active operator. |

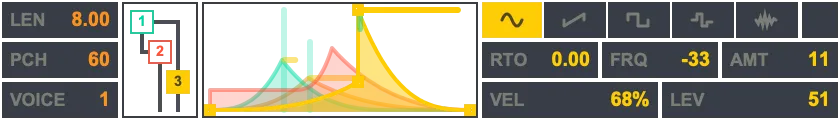

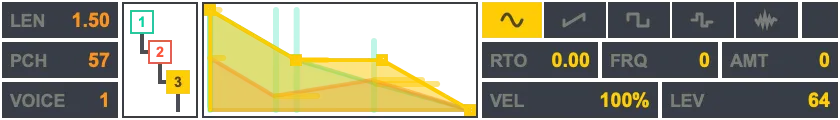

3-2 : FM Synth
| Parameter | Description |
|---|---|
| LEN | Adjusts the length of the FM synth. |
| PCH | Adjusts the pitch of the sound in semitone steps. |
| VOICE | Sets the maximum number of voices that can play at once. |
| ALGORITHM | Selects the algorithm type. See also FM Algorithm. |
| ENVELOPE | Sets the volume and pitch envelopes. See also Envelope. |
| WAVEFORM | Selects the waveform of the active operator. |
| RTO | Adjusts the frequency ratio of the active operator. |
| FRQ | Adjusts the ring modulation frequency of the active operator. |
| AMT | Adjusts the amount of ring modulation for the active operator. |
| SYNC | Sets the sync modulation of the active operator. |
| VEL | Adjusts the percentage of velocity applied to the active operator; setting to 0% ignores the velocity value of the sequence. |
| MOD | Adjusts the amount of frequency modulation for the active operator. |
| LEV | Adjusts the output level of the active operator. |
Controllable Parameters (337 Parameters)
| Category | OSC address | Range | Default |
|---|---|---|---|
| PRESET | /group3/preset/{KEY(A-K)} | PRESET - | - |
| PRESET | /group3/preset/{KEY(Q-P)} | PRESET - | - |
| PARAM | /group3/enable | TOGGLE ON - OFF | ON |
| TRIG | /group3/1/trigger | TRIGGER 0.00 - 1.00 | - |
| PARAM | /group3/1/algorithm | CHOICES ALGORITHM-1, ALGORITHM-2, ALGORITHM-3, ALGORITHM-4, ALGORITHM-5 | ALGORITHM-1 |
| PARAM | /group3/1/dejavu/length | NUMBER 1 - 32 | 8 |
| PARAM | /group3/1/dejavu/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/1/length | NUMBER 0.12 - 64.00 | 2.00 |
| PARAM | /group3/1/op1/envelope/amp/{POINT(1-4)}/curve | NUMBER 0.33 - 3.00 | 1.00 |
| PARAM | /group3/1/op1/envelope/amp/{POINT(1-4)}/range/x | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op1/envelope/amp/{POINT(1-4)}/range/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op1/envelope/amp/{POINT(1-4)}/x | NUMBER 0.00 - 1.00 | 1.00 |
| PARAM | /group3/1/op1/envelope/amp/{POINT(1-4)}/y | NUMBER 0.00 - 1.00 | 0.50 |
| PARAM | /group3/1/op1/envelope/pitch/{POINT(1-3)}/curve | NUMBER 0.33 - 3.00 | 1.00 |
| PARAM | /group3/1/op1/envelope/pitch/{POINT(1-3)}/range/x | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op1/envelope/pitch/{POINT(1-3)}/range/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op1/envelope/pitch/{POINT(1-3)}/x | NUMBER 0.00 - 1.00 | 1.00 |
| PARAM | /group3/1/op1/envelope/pitch/{POINT(1-3)}/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op1/level | NUMBER 0 - 127 | 64 |
| PARAM | /group3/1/op1/lfo/amount | NUMBER -64 - 64 | 0 |
| PARAM | /group3/1/op1/lfo/frequency | NUMBER -64 - 64 | 0 |
| PARAM | /group3/1/op1/modulation | NUMBER 0.00 - 100.00 | 0.00 |
| PARAM | /group3/1/op1/ratio | NUMBER -36.00 - 36.00 | 0.00 |
| PARAM | /group3/1/op1/sync | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/op1/velocity | NUMBER 0% - 100% | 100% |
| PARAM | /group3/1/op1/waveform | CHOICES SINE, SAW, SQUARE, RANDOM, NOISE | SINE |
| PARAM | /group3/1/op1/waveform/noise | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/op1/waveform/random | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/op1/waveform/saw | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/op1/waveform/sine | TOGGLE ON - OFF | ON |
| PARAM | /group3/1/op1/waveform/square | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/op2/envelope/amp/{POINT(1-4)}/curve | NUMBER 0.33 - 3.00 | 1.00 |
| PARAM | /group3/1/op2/envelope/amp/{POINT(1-4)}/range/x | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op2/envelope/amp/{POINT(1-4)}/range/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op2/envelope/amp/{POINT(1-4)}/x | NUMBER 0.00 - 1.00 | 1.00 |
| PARAM | /group3/1/op2/envelope/amp/{POINT(1-4)}/y | NUMBER 0.00 - 1.00 | 0.50 |
| PARAM | /group3/1/op2/envelope/pitch/{POINT(1-3)}/curve | NUMBER 0.33 - 3.00 | 1.00 |
| PARAM | /group3/1/op2/envelope/pitch/{POINT(1-3)}/range/x | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op2/envelope/pitch/{POINT(1-3)}/range/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op2/envelope/pitch/{POINT(1-3)}/x | NUMBER 0.00 - 1.00 | 1.00 |
| PARAM | /group3/1/op2/envelope/pitch/{POINT(1-3)}/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op2/level | NUMBER 0 - 127 | 64 |
| PARAM | /group3/1/op2/lfo/amount | NUMBER -64 - 64 | 0 |
| PARAM | /group3/1/op2/lfo/frequency | NUMBER -64 - 64 | 0 |
| PARAM | /group3/1/op2/modulation | NUMBER 0.00 - 100.00 | 0.00 |
| PARAM | /group3/1/op2/ratio | NUMBER -36.00 - 36.00 | 0.00 |
| PARAM | /group3/1/op2/sync | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/op2/velocity | NUMBER 0% - 100% | 100% |
| PARAM | /group3/1/op2/waveform | CHOICES SINE, SAW, SQUARE, RANDOM, NOISE | SINE |
| PARAM | /group3/1/op2/waveform/noise | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/op2/waveform/random | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/op2/waveform/saw | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/op2/waveform/sine | TOGGLE ON - OFF | ON |
| PARAM | /group3/1/op2/waveform/square | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/op3/envelope/amp/{POINT(1-4)}/curve | NUMBER 0.33 - 3.00 | 1.00 |
| PARAM | /group3/1/op3/envelope/amp/{POINT(1-4)}/range/x | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op3/envelope/amp/{POINT(1-4)}/range/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op3/envelope/amp/{POINT(1-4)}/x | NUMBER 0.00 - 1.00 | 1.00 |
| PARAM | /group3/1/op3/envelope/amp/{POINT(1-4)}/y | NUMBER 0.00 - 1.00 | 0.50 |
| PARAM | /group3/1/op3/envelope/pitch/{POINT(1-3)}/curve | NUMBER 0.33 - 3.00 | 1.00 |
| PARAM | /group3/1/op3/envelope/pitch/{POINT(1-3)}/range/x | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op3/envelope/pitch/{POINT(1-3)}/range/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op3/envelope/pitch/{POINT(1-3)}/x | NUMBER 0.00 - 1.00 | 1.00 |
| PARAM | /group3/1/op3/envelope/pitch/{POINT(1-3)}/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/1/op3/level | NUMBER 0 - 127 | 64 |
| PARAM | /group3/1/op3/lfo/amount | NUMBER -64 - 64 | 0 |
| PARAM | /group3/1/op3/lfo/frequency | NUMBER -64 - 64 | 0 |
| PARAM | /group3/1/op3/ratio | NUMBER -36.00 - 36.00 | 0.00 |
| PARAM | /group3/1/op3/velocity | NUMBER 0% - 100% | 100% |
| PARAM | /group3/1/op3/waveform | CHOICES SINE, SAW, SQUARE, RANDOM, NOISE | SINE |
| PARAM | /group3/1/op3/waveform/noise | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/op3/waveform/random | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/op3/waveform/saw | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/op3/waveform/sine | TOGGLE ON - OFF | ON |
| PARAM | /group3/1/op3/waveform/square | TOGGLE ON - OFF | OFF |
| PARAM | /group3/1/pitch | NUMBER 0 - 127 | 60 |
| PARAM | /group3/1/voice | NUMBER 1 - 8 | 8 |
| TRIG | /group3/2/trigger | TRIGGER 0.00 - 1.00 | - |
| PARAM | /group3/2/algorithm | CHOICES ALGORITHM-1, ALGORITHM-2, ALGORITHM-3, ALGORITHM-4, ALGORITHM-5 | ALGORITHM-1 |
| PARAM | /group3/2/dejavu/length | NUMBER 1 - 32 | 8 |
| PARAM | /group3/2/dejavu/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/2/length | NUMBER 0.12 - 64.00 | 2.00 |
| PARAM | /group3/2/op1/envelope/amp/{POINT(1-4)}/curve | NUMBER 0.33 - 3.00 | 1.00 |
| PARAM | /group3/2/op1/envelope/amp/{POINT(1-4)}/range/x | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op1/envelope/amp/{POINT(1-4)}/range/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op1/envelope/amp/{POINT(1-4)}/x | NUMBER 0.00 - 1.00 | 1.00 |
| PARAM | /group3/2/op1/envelope/amp/{POINT(1-4)}/y | NUMBER 0.00 - 1.00 | 0.50 |
| PARAM | /group3/2/op1/envelope/pitch/{POINT(1-3)}/curve | NUMBER 0.33 - 3.00 | 1.00 |
| PARAM | /group3/2/op1/envelope/pitch/{POINT(1-3)}/range/x | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op1/envelope/pitch/{POINT(1-3)}/range/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op1/envelope/pitch/{POINT(1-3)}/x | NUMBER 0.00 - 1.00 | 1.00 |
| PARAM | /group3/2/op1/envelope/pitch/{POINT(1-3)}/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op1/level | NUMBER 0 - 127 | 64 |
| PARAM | /group3/2/op1/lfo/amount | NUMBER -64 - 64 | 0 |
| PARAM | /group3/2/op1/lfo/frequency | NUMBER -64 - 64 | 0 |
| PARAM | /group3/2/op1/modulation | NUMBER 0.00 - 100.00 | 0.00 |
| PARAM | /group3/2/op1/ratio | NUMBER -36.00 - 36.00 | 0.00 |
| PARAM | /group3/2/op1/sync | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/op1/velocity | NUMBER 0% - 100% | 100% |
| PARAM | /group3/2/op1/waveform | CHOICES SINE, SAW, SQUARE, RANDOM, NOISE | SINE |
| PARAM | /group3/2/op1/waveform/noise | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/op1/waveform/random | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/op1/waveform/saw | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/op1/waveform/sine | TOGGLE ON - OFF | ON |
| PARAM | /group3/2/op1/waveform/square | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/op2/envelope/amp/{POINT(1-4)}/curve | NUMBER 0.33 - 3.00 | 1.00 |
| PARAM | /group3/2/op2/envelope/amp/{POINT(1-4)}/range/x | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op2/envelope/amp/{POINT(1-4)}/range/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op2/envelope/amp/{POINT(1-4)}/x | NUMBER 0.00 - 1.00 | 1.00 |
| PARAM | /group3/2/op2/envelope/amp/{POINT(1-4)}/y | NUMBER 0.00 - 1.00 | 0.50 |
| PARAM | /group3/2/op2/envelope/pitch/{POINT(1-3)}/curve | NUMBER 0.33 - 3.00 | 1.00 |
| PARAM | /group3/2/op2/envelope/pitch/{POINT(1-3)}/range/x | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op2/envelope/pitch/{POINT(1-3)}/range/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op2/envelope/pitch/{POINT(1-3)}/x | NUMBER 0.00 - 1.00 | 1.00 |
| PARAM | /group3/2/op2/envelope/pitch/{POINT(1-3)}/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op2/level | NUMBER 0 - 127 | 64 |
| PARAM | /group3/2/op2/lfo/amount | NUMBER -64 - 64 | 0 |
| PARAM | /group3/2/op2/lfo/frequency | NUMBER -64 - 64 | 0 |
| PARAM | /group3/2/op2/modulation | NUMBER 0.00 - 100.00 | 0.00 |
| PARAM | /group3/2/op2/ratio | NUMBER -36.00 - 36.00 | 0.00 |
| PARAM | /group3/2/op2/sync | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/op2/velocity | NUMBER 0% - 100% | 100% |
| PARAM | /group3/2/op2/waveform | CHOICES SINE, SAW, SQUARE, RANDOM, NOISE | SINE |
| PARAM | /group3/2/op2/waveform/noise | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/op2/waveform/random | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/op2/waveform/saw | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/op2/waveform/sine | TOGGLE ON - OFF | ON |
| PARAM | /group3/2/op2/waveform/square | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/op3/envelope/amp/{POINT(1-4)}/curve | NUMBER 0.33 - 3.00 | 1.00 |
| PARAM | /group3/2/op3/envelope/amp/{POINT(1-4)}/range/x | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op3/envelope/amp/{POINT(1-4)}/range/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op3/envelope/amp/{POINT(1-4)}/x | NUMBER 0.00 - 1.00 | 1.00 |
| PARAM | /group3/2/op3/envelope/amp/{POINT(1-4)}/y | NUMBER 0.00 - 1.00 | 0.50 |
| PARAM | /group3/2/op3/envelope/pitch/{POINT(1-3)}/curve | NUMBER 0.33 - 3.00 | 1.00 |
| PARAM | /group3/2/op3/envelope/pitch/{POINT(1-3)}/range/x | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op3/envelope/pitch/{POINT(1-3)}/range/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op3/envelope/pitch/{POINT(1-3)}/x | NUMBER 0.00 - 1.00 | 1.00 |
| PARAM | /group3/2/op3/envelope/pitch/{POINT(1-3)}/y | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /group3/2/op3/level | NUMBER 0 - 127 | 64 |
| PARAM | /group3/2/op3/lfo/amount | NUMBER -64 - 64 | 0 |
| PARAM | /group3/2/op3/lfo/frequency | NUMBER -64 - 64 | 0 |
| PARAM | /group3/2/op3/ratio | NUMBER -36.00 - 36.00 | 0.00 |
| PARAM | /group3/2/op3/velocity | NUMBER 0% - 100% | 100% |
| PARAM | /group3/2/op3/waveform | CHOICES SINE, SAW, SQUARE, RANDOM, NOISE | SINE |
| PARAM | /group3/2/op3/waveform/noise | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/op3/waveform/random | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/op3/waveform/saw | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/op3/waveform/sine | TOGGLE ON - OFF | ON |
| PARAM | /group3/2/op3/waveform/square | TOGGLE ON - OFF | OFF |
| PARAM | /group3/2/pitch | NUMBER 0 - 127 | 60 |
| PARAM | /group3/2/voice | NUMBER 1 - 8 | 8 |
| PARAM | /group3/bitcrush | NUMBER 0 - 127 | 127 |
| PARAM | /group3/bitcrush/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/bitcrush/range | NUMBER 0% - 100% | 0% |
| PARAM | /group3/bus/bus1 | TOGGLE ON - OFF | ON |
| PARAM | /group3/bus/bus2 | TOGGLE ON - OFF | OFF |
| PARAM | /group3/bus/bus3 | TOGGLE ON - OFF | OFF |
| PARAM | /group3/bus/fx1 | TOGGLE ON - OFF | OFF |
| PARAM | /group3/bus/fx2 | TOGGLE ON - OFF | OFF |
| PARAM | /group3/bus/fx3 | TOGGLE ON - OFF | OFF |
| PARAM | /group3/bus/send | TOGGLE ON - OFF | ON |
| PARAM | /group3/bus/send/delay1 | NUMBER 0 - 127 | 0 |
| PARAM | /group3/bus/send/delay1/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/bus/send/delay1/range | NUMBER 0% - 100% | 0% |
| PARAM | /group3/bus/send/delay2 | NUMBER 0 - 127 | 0 |
| PARAM | /group3/bus/send/delay2/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/bus/send/delay2/range | NUMBER 0% - 100% | 0% |
| PARAM | /group3/bus/send/reverb | NUMBER 0 - 127 | 0 |
| PARAM | /group3/bus/send/reverb/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/bus/send/reverb/range | NUMBER 0% - 100% | 0% |
| PARAM | /group3/cv | NUMBER 0% - 100% | 100% |
| PARAM | /group3/dejavu/length | NUMBER 1 - 32 | 8 |
| PARAM | /group3/dejavu/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/downsample | NUMBER 0 - 127 | 127 |
| PARAM | /group3/downsample/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/downsample/range | NUMBER 0% - 100% | 0% |
| PARAM | /group3/filter/highpass | NUMBER 0 - 127 | 0 |
| PARAM | /group3/filter/highpass/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/filter/highpass/range | NUMBER 0% - 100% | 0% |
| PARAM | /group3/filter/lowpass | NUMBER 0 - 127 | 127 |
| PARAM | /group3/filter/lowpass/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/filter/lowpass/range | NUMBER 0% - 100% | 0% |
| PARAM | /group3/filter/resonance | NUMBER 0 - 127 | 0 |
| PARAM | /group3/filter/resonance/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/filter/resonance/range | NUMBER 0% - 100% | 0% |
| PARAM | /group3/level | NUMBER 0 - 127 | 64 |
| PARAM | /group3/level/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/level/range | NUMBER 0% - 100% | 0% |
| PARAM | /group3/mute | TOGGLE ON - OFF | OFF |
| PARAM | /group3/overtone | NUMBER 0 - 127 | 0 |
| PARAM | /group3/overtone/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/overtone/range | NUMBER 0% - 100% | 0% |
| PARAM | /group3/pan | NUMBER L50 - R50 | C |
| PARAM | /group3/pan/prob | NUMBER 0% - 100% | 0% |
| PARAM | /group3/pan/range | NUMBER 0% - 100% | 0% |
