Modules Guide - SLC

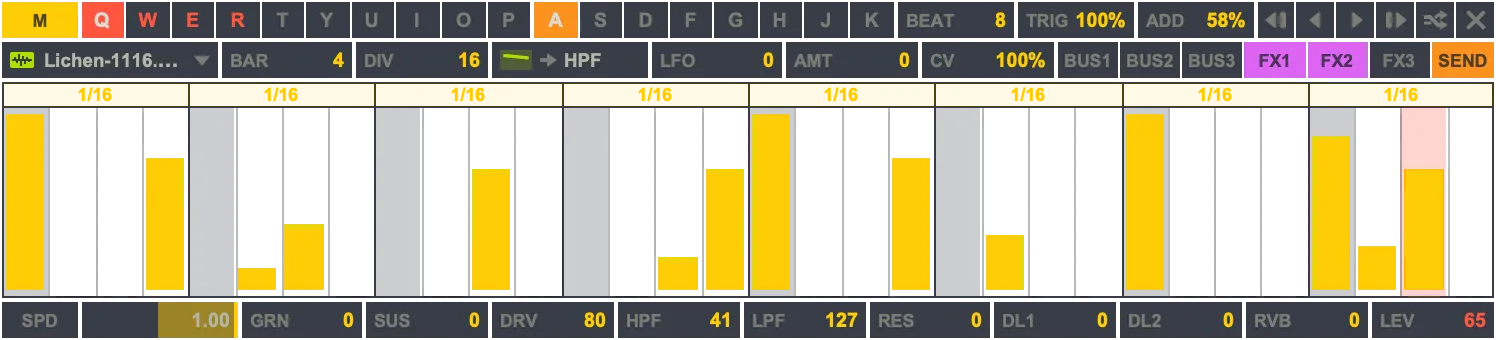

The SLC module is a sample slicer with a step sequencer. It rearranges and plays sound files divided by the DIV value.
| Parameter | Description |
|---|---|
| M (Activator Switch) | Turns the module on or off, also operated by pressing the M key. |
| BEAT | Sets the length of the sequence. |
| TRIG | Sets the trigger probability for the sequence. At 100%, all programmed steps will trigger. At 0%, none of them will trigger. |
| ADD | Sets the probability of extra triggers. Additional trigger events are added to cells where no sequence events are set. |
| FILE MENU | Selects the sound file. See also Sound File Menu. |
| BAR | Sets the number of bars; values greater than 0 will adjust the speed to sync with the BPM. |
| DIV | Sets the number of divisions. |
| LFO MENU | Selects the LFO waveform and target. |
| LFO | Adjusts the frequency of the LFO. |
| AMT | Adjusts the amount of LFO modulation. |
| CV | Sets the probability of sending CV. See also Trigger Events (CV). |
| BUS | Selects the output destination for the module. See also Audio Bus. |
| SPD | Adjusts the playback speed. |
| GRN | Adjusts the amount of granulation; a value greater than 0 will cause the slices to be granulated. |
| SUS | Adjusts the sustain level; if it is greater than 0, it will be played back all the way until the next trigger. |
| DRV | Adjusts the amount of overdrive. |
| HPF | Adjusts the cutoff frequency of the high-pass filter. |
| LPF | Adjusts the cutoff frequency of the low-pass filter. |
| RES | Adjusts the resonance amount of the high-pass and low-pass filter. |
| DL1 | Adjusts the send level to DL1, which is not sent if the send bus is disabled. |
| DL2 | Adjusts the send level to DL2, which is not sent if the send bus is disabled. |
| RVB | Adjusts the send level to RVB, which is not sent if the send bus is disabled. |
| LEV | Adjusts the output level. |
Controllable Parameters (343 Parameters)
| Category | OSC address | Range | Default |
|---|---|---|---|
| PRESET | /slicer/preset/{KEY(A-K)} | PRESET - | - |
| PRESET | /slicer/preset/{KEY(Q-P)} | PRESET - | - |
| PARAM | /slicer/enable | TOGGLE ON - OFF | ON |
| PARAM | /slicer/bar | NUMBER 0 - 32 | 0 |
| PARAM | /slicer/beat | NUMBER 1 - 32 | 8 |
| PARAM | /slicer/bus/bus1 | TOGGLE ON - OFF | ON |
| PARAM | /slicer/bus/bus2 | TOGGLE ON - OFF | OFF |
| PARAM | /slicer/bus/bus3 | TOGGLE ON - OFF | OFF |
| PARAM | /slicer/bus/fx1 | TOGGLE ON - OFF | OFF |
| PARAM | /slicer/bus/fx2 | TOGGLE ON - OFF | OFF |
| PARAM | /slicer/bus/fx3 | TOGGLE ON - OFF | OFF |
| PARAM | /slicer/bus/send | TOGGLE ON - OFF | ON |
| PARAM | /slicer/bus/send/delay1 | NUMBER 0 - 127 | 0 |
| PARAM | /slicer/bus/send/delay2 | NUMBER 0 - 127 | 0 |
| PARAM | /slicer/bus/send/reverb | NUMBER 0 - 127 | 0 |
| PARAM | /slicer/clear | TRIGGER 0.00 - 1.00 | - |
| PARAM | /slicer/cv | NUMBER 0% - 100% | 100% |
| PARAM | /slicer/dejavu/length | NUMBER 1 - 32 | 8 |
| PARAM | /slicer/dejavu/prob | NUMBER 0% - 100% | 0% |
| PARAM | /slicer/division | NUMBER 1 - 128 | 16 |
| PARAM | /slicer/filter/highpass | NUMBER 0 - 127 | 0 |
| PARAM | /slicer/filter/lowpass | NUMBER 0 - 127 | 127 |
| PARAM | /slicer/filter/resonance | NUMBER 0 - 127 | 0 |
| PARAM | /slicer/grain | NUMBER 0 - 127 | 0 |
| PARAM | /slicer/level | NUMBER 0 - 127 | 64 |
| PARAM | /slicer/lfo/amount | NUMBER -64 - 64 | 0 |
| PARAM | /slicer/lfo/frequency | NUMBER -64 - 64 | 0 |
| PARAM | /slicer/lfo/target | CHOICES SPD, GRN, SUS, DRV, HPF, LPF, RES, DL1, DL2, RVB, LEV | HPF |
| PARAM | /slicer/lfo/waveform | CHOICES SIN, SIN-UP, SIN-DOWN, TRI, TRI-UP, TRI-DOWN, SAW-UP, SAW-DOWN, SQR-UP, SQR-DOWN, RMP-UP, RMP-DOWN, RND | SIN |
| PARAM | /slicer/overdrive | NUMBER 0 - 127 | 0 |
| PARAM | /slicer/prob/trigger | NUMBER 0% - 100% | 100% |
| PARAM | /slicer/prob/add | NUMBER 0% - 100% | 0% |
| PARAM | /slicer/rotate/beat/left | TRIGGER 0.00 - 1.00 | - |
| PARAM | /slicer/rotate/beat/right | TRIGGER 0.00 - 1.00 | - |
| PARAM | /slicer/rotate/cell/left | TRIGGER 0.00 - 1.00 | - |
| PARAM | /slicer/rotate/cell/right | TRIGGER 0.00 - 1.00 | - |
| PARAM | /slicer/seq/resolution/{BEAT(1-32)} | NUMBER 1/4 - 1/32 | 1/16 |
| PARAM | /slicer/seq/{BEAT(1-32)}/{CELL(1-8)} | NUMBER 0.00 - 1.00 | 0.00 |
| PARAM | /slicer/shuffle | TRIGGER 0.00 - 1.00 | - |
| PARAM | /slicer/speed | NUMBER -1.00 - 1.00 | 1.00 |
| PARAM | /slicer/sustain | NUMBER 0 - 127 | 0 |
